Lubin
Kościół Matki Bożej Częstochowskiej in Lubin, Poland
Keyboards
2+P
Stops
30
Built by
Johannes Klais (2022)

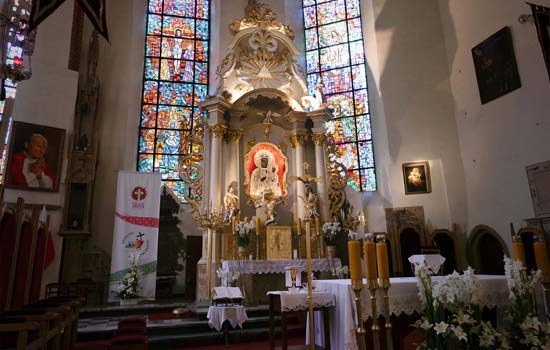

The Church of Our Lady of Częstochowa in Lubin preserves a remarkable history of organ building dating back to the Renaissance period. Archival records confirm that already in 1595 the church possessed an organ with a Renaissance façade. Over the centuries the instrument was rebuilt several times, and in 1785 Martin Benjamin Liebeherr, the renowned organ builder from Góra Śląska (Guhrau), constructed a new organ that became a landmark example of the Silesian school of organ building. His instrument combined elegance of design with tonal richness and coherence. Liebeherr is known to have collaborated with Adam Horatio Engler, one of the most important organ builders of the region, and this connection provided valuable reference points during the later reconstruction. Subsequent rebuilds in the 19th and early 20th century altered the original concept considerably, introducing new windchests, extending the keyboard range, and eventually replacing the tracker action with tubular key and stop action. Much of the original pipework was replaced, and the stylistic unity between façade and interior was lost. After the devastation of the Second World War and decades of partial repairs, the organ eventually deteriorated to a state where only a thorough reconstruction could restore its former glory.

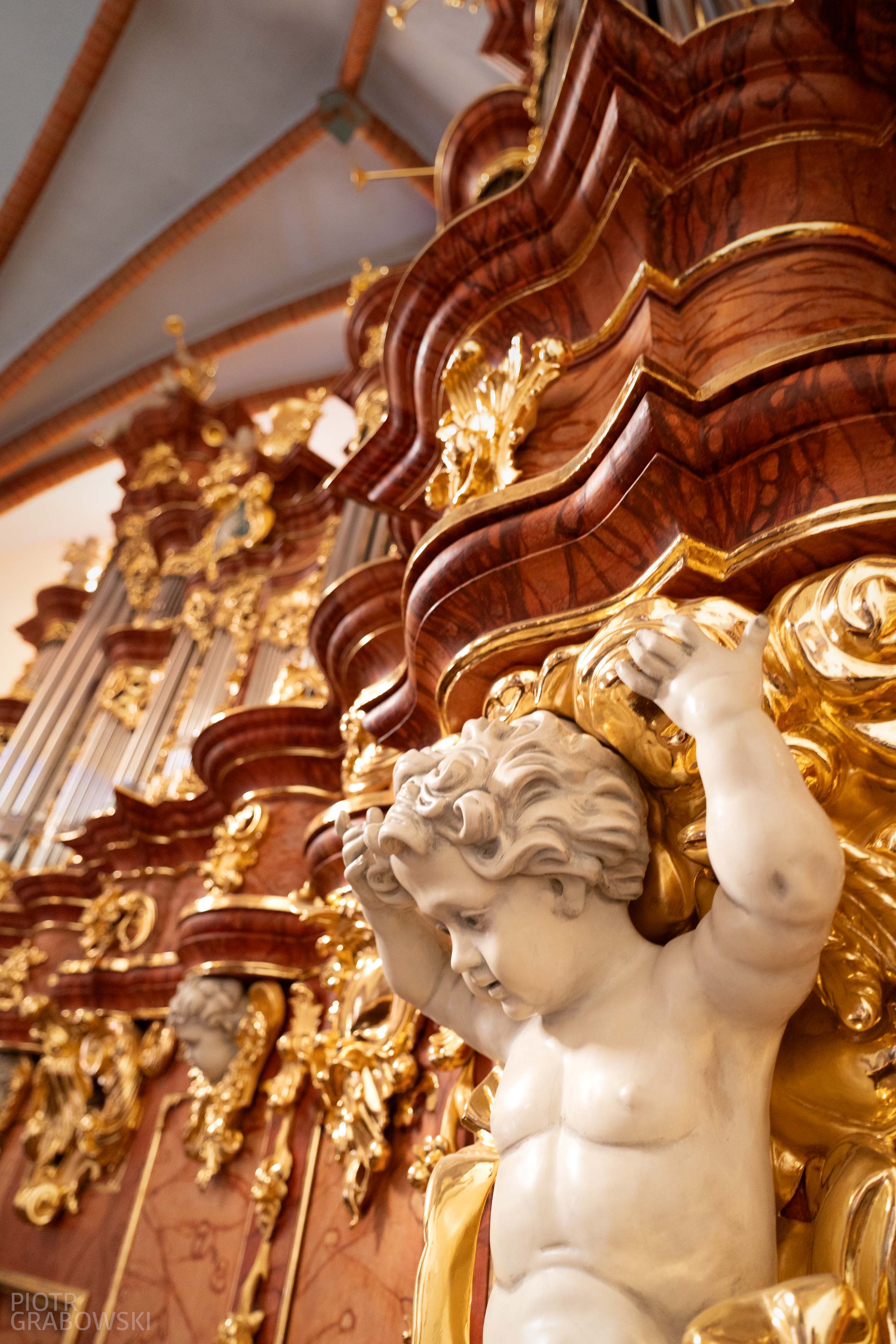

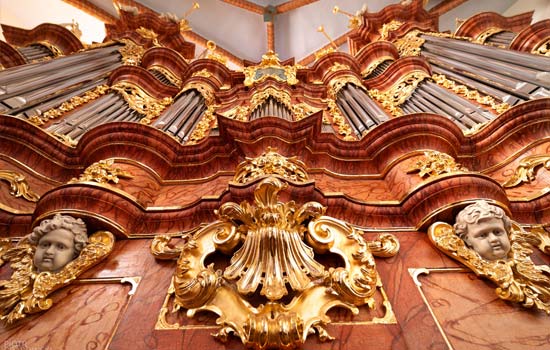

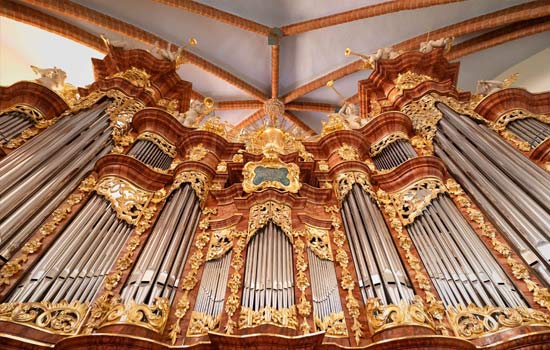

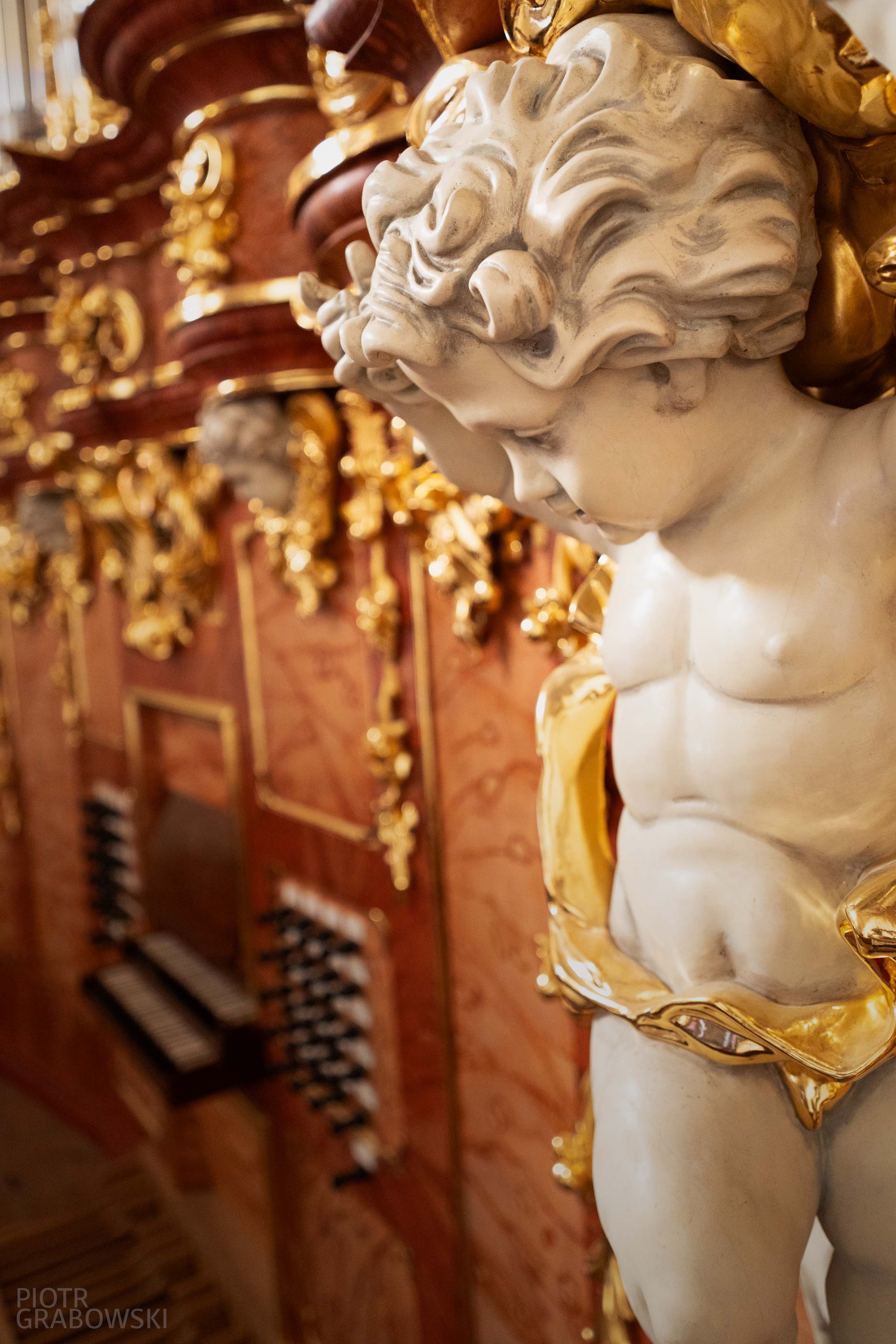

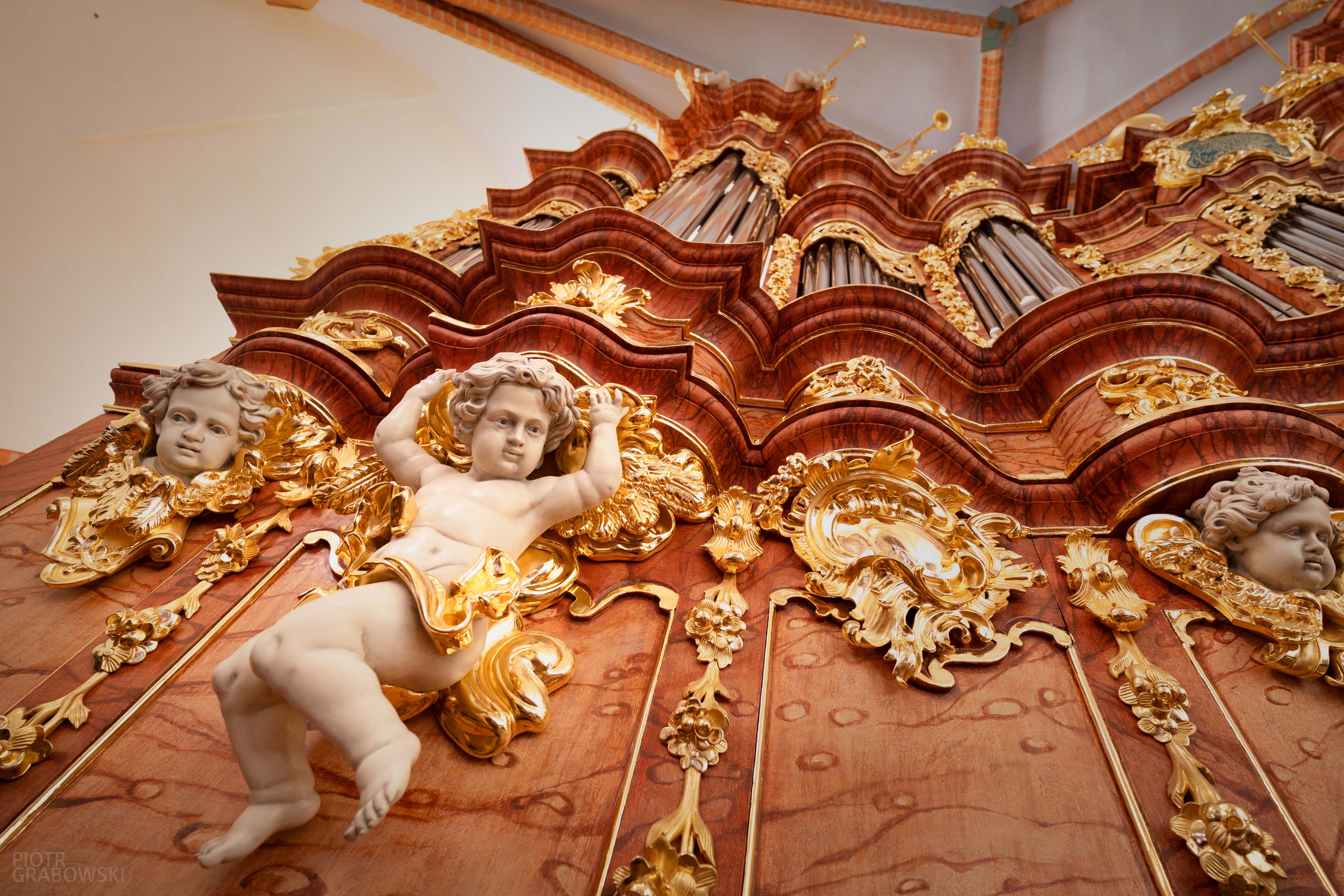

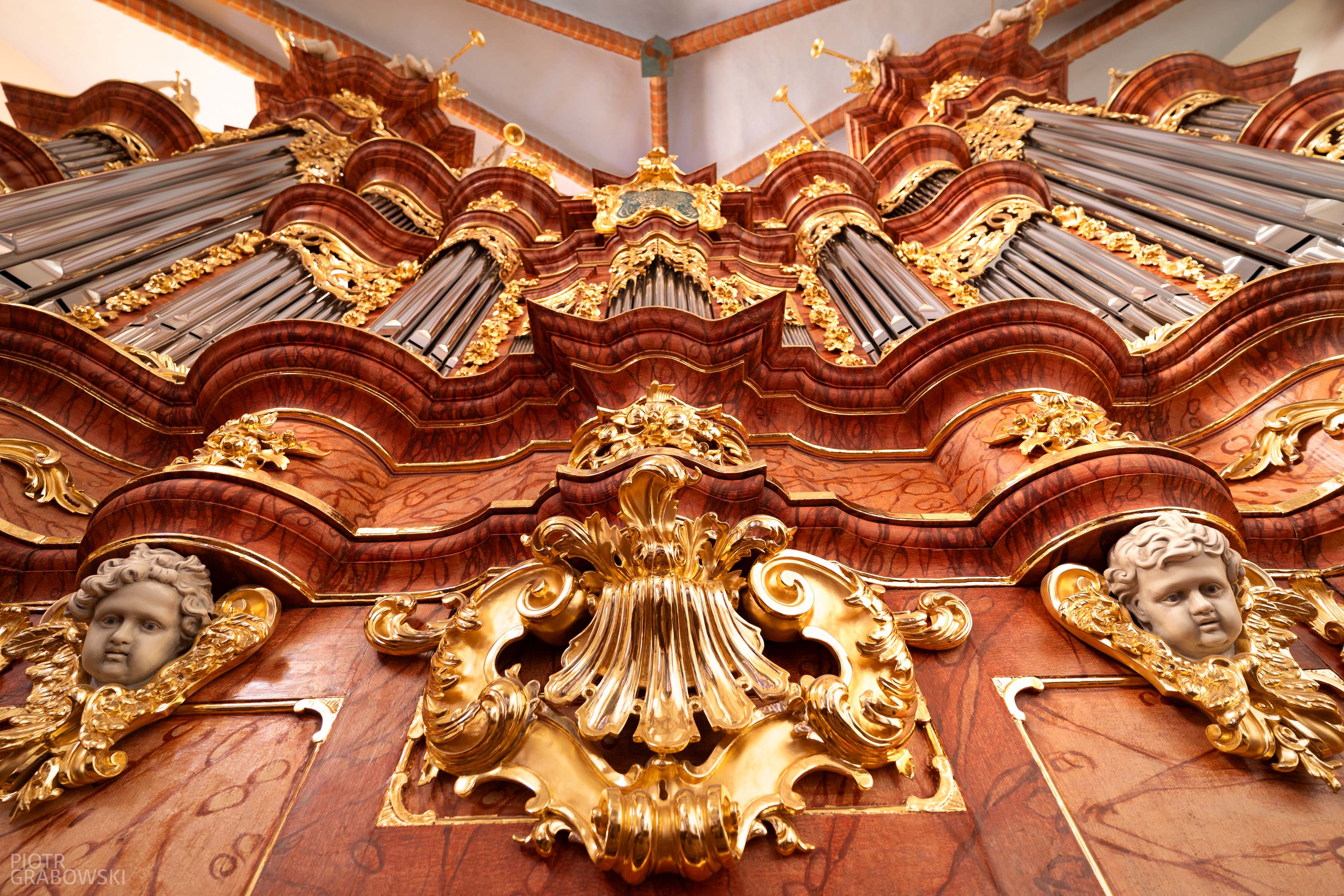

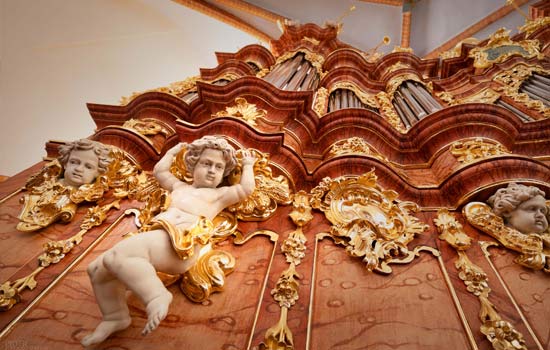

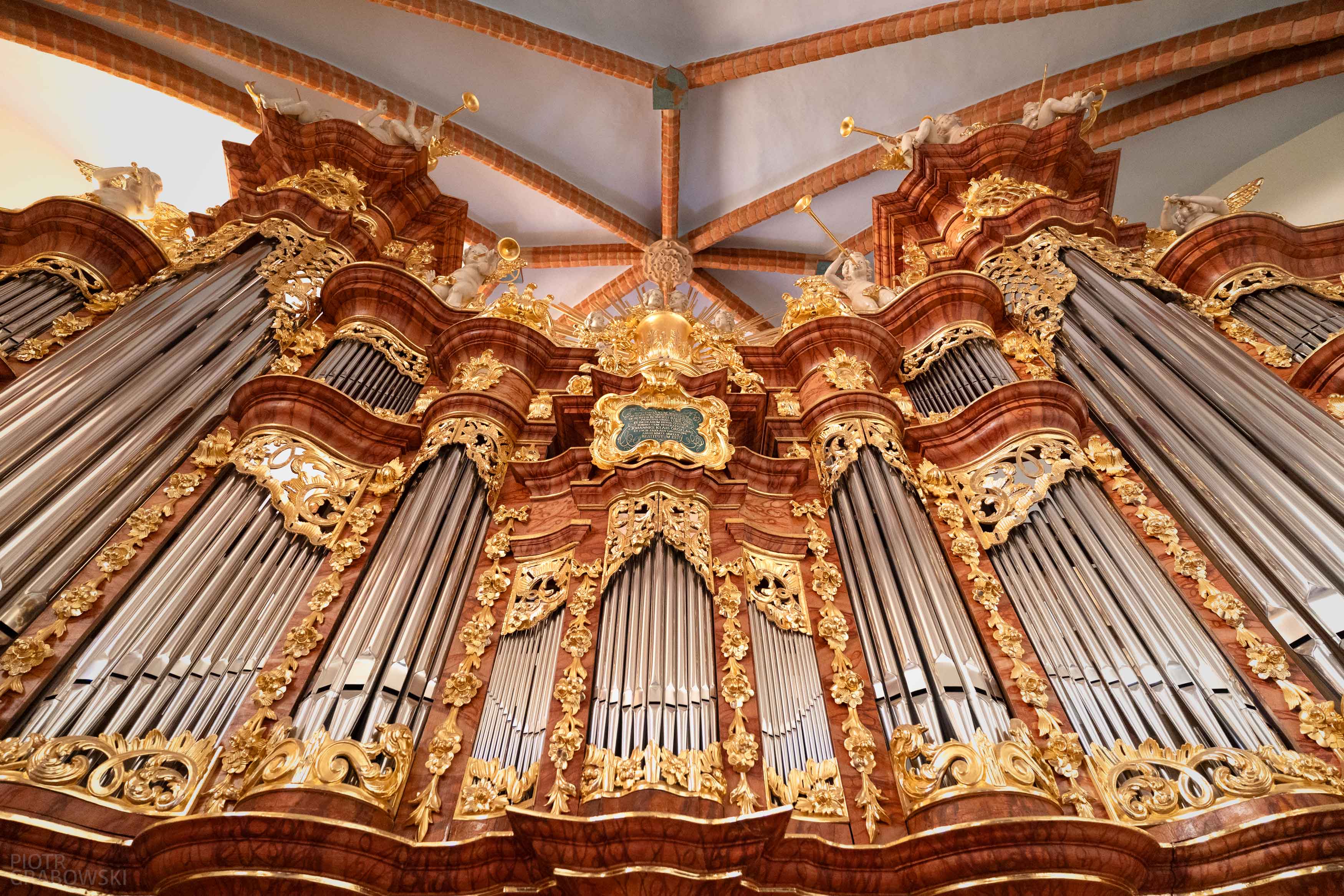

This work was undertaken by Johannes Klais Orgelbau of Bonn, in collaboration with Zych Zakłady Organowe, between 2020 and 2022. Using surviving historical elements, archival research, and stylistic analogies – including those drawn from Engler’s instruments – a new organ was created in the tradition of Liebeherr. The keyboards and pedal were given a slightly extended range, allowing the organ to serve not only in historical repertoire but also in wider liturgical and concert use. The richly decorated case with reconstructed carvings, restored façade pipes, and finely crafted details once again form a stylistically unified whole with the sound and mechanism. The instrument is praised by many organists for its colourful and balanced sound. Klais carried out an outstanding reconstruction of the organ, demonstrating exceptional skill and attention to detail.

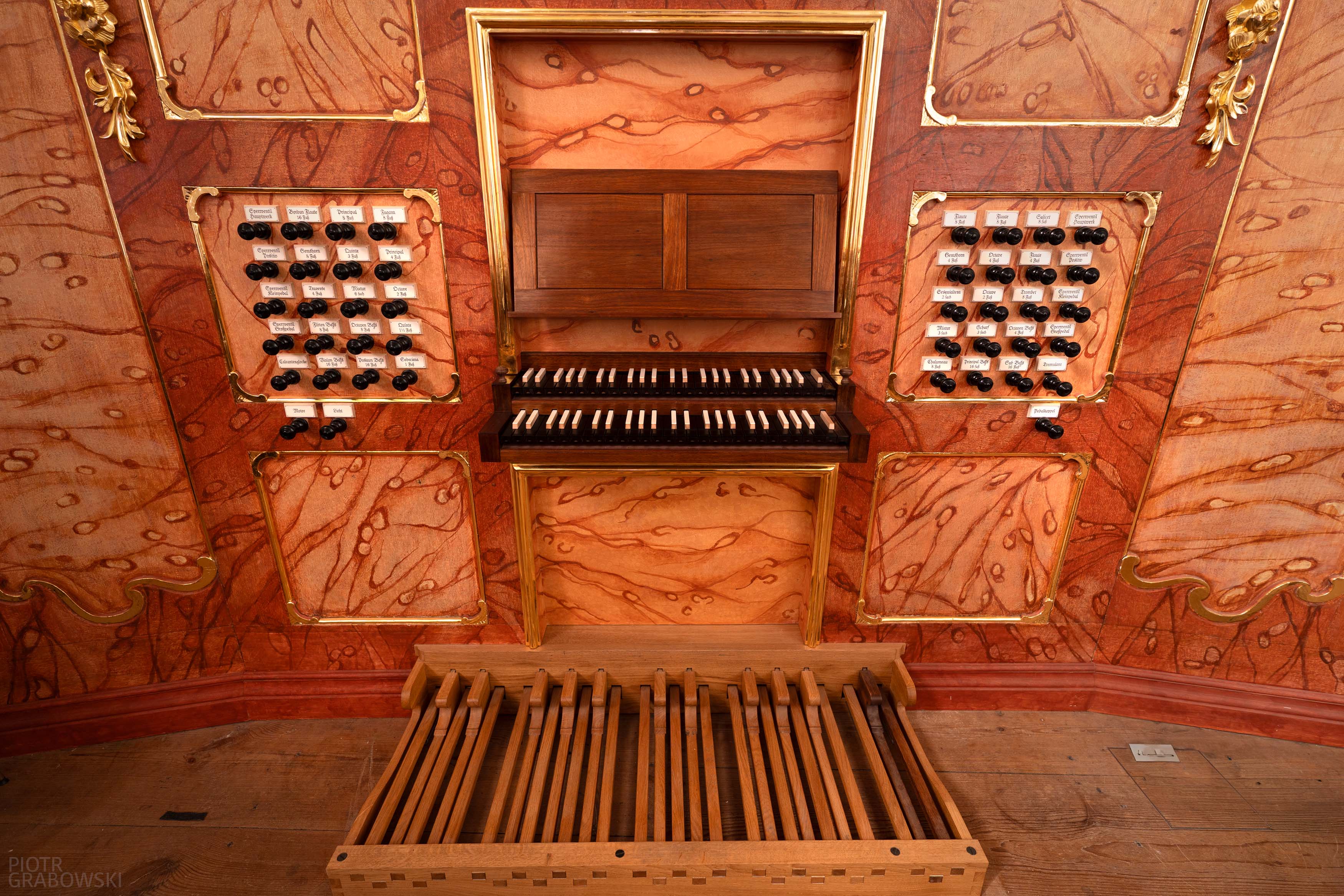

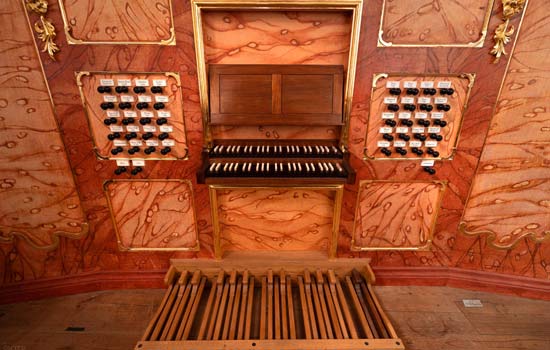

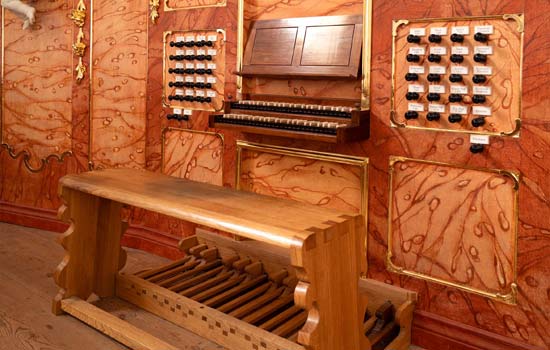

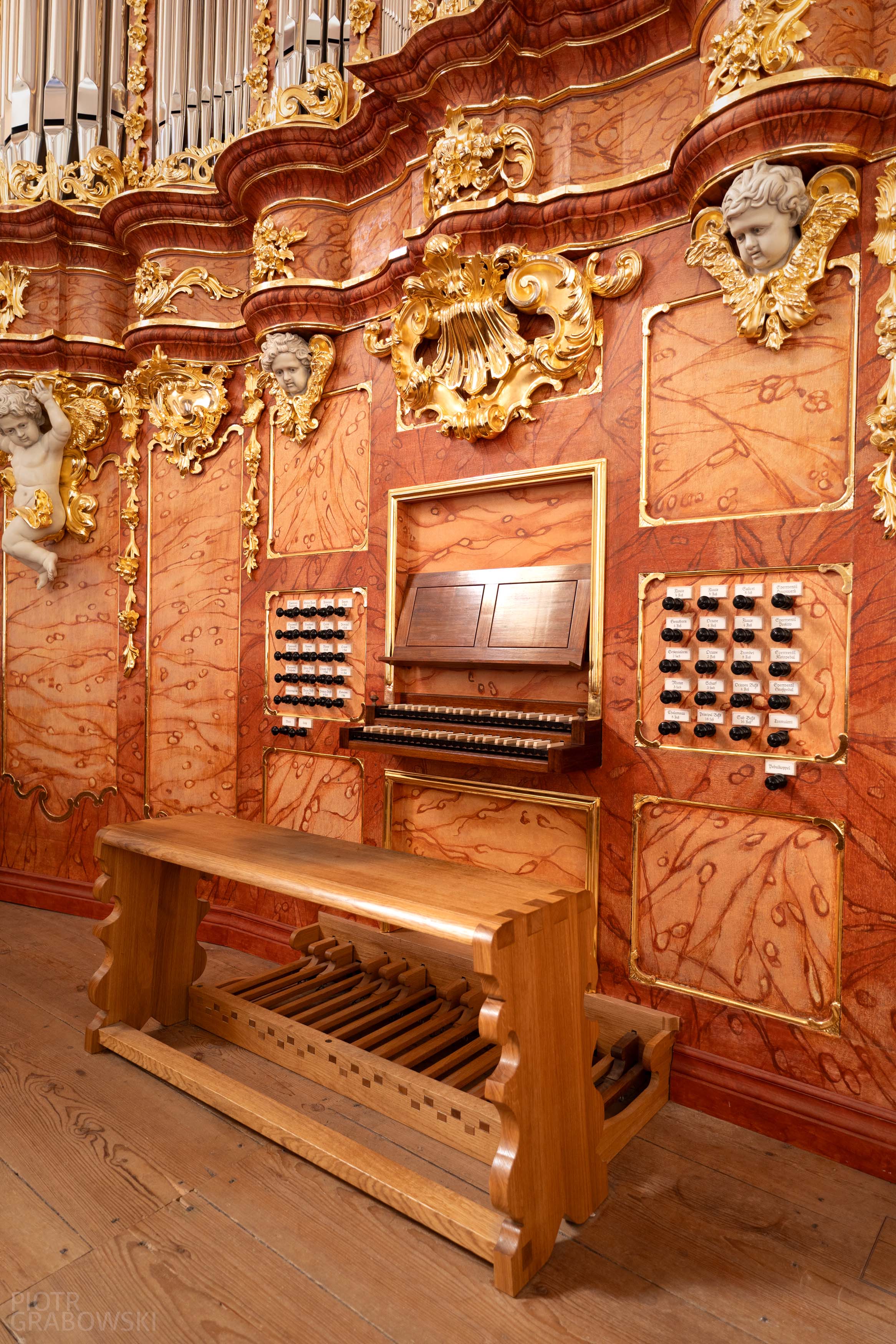

The organ contains Sperrventile, which allow separate groups of stops to be switched off. On the original organ, the left-hand switches control the C side, while the right-hand switches control the C# side; in the sample set these have been linked for easier operation. The organ also possesses the historical Schiebekoppel, a manual coupler activated by sliding the upper keyboard over the lower one. In the sample set this function has been implemented as a virtual drawknob in the Console view. The keyboard compass was extended: in the pedal, from C-d1 (C2-D4) to C-f1 (C2-F4), and in the manuals, from C-d3 (C2-D6) to C-g3 (C2-G6).

Please note that the license for this sample set covers private use only – commercial use is not permitted.

This virtual instrument, based on the Martin Benjamin Lieberherr organ from the church of Our Lady of Częstochowa (Kościół Matki Bożej Częstochowskiej) in Lubin, was made possible thanks to the courtesy of The Polish National Wind Orchestra.

HauptwerkBordun Flaute 16 Fuß
Principal 8 Fuß
Gemshorn 8 Fuß
Salicet 8 Fuß
Flaute 8 Fuß
Octave 4 Fuß
Flaute 4 Fuß
Traverse 4 Fuß
Quinte 3 Fuß
Octave 2 Fuß
Mixtur 6 fach
Scharf 3 fach
Trombet 8 Fuß

Manualkoppel
PositivFugara 8 Fuß
Flaute 8 Fuß
Principal 4 Fuß
Gemshorn 4 Fuß
Octave 2 Fuß
Quinte 1 1/2 Fuß
Sedecima 1 Fuß
Sesquialtera 2 fach
Mixtur 3 fach
Chalumeau 8 Fuß

Tremulant
PedalPrincipal Bass 16 Fuß 1
Violon Bass 16 Fuß 2
Sub Bass 16 Fuß 1
Octaven Bass 8 Fuß 2
Flöten Bass 8 Fuß 2
Octaven Bass 4 Fuß 2
Posaun Bass 16 Fuß 1

Pedalkoppel

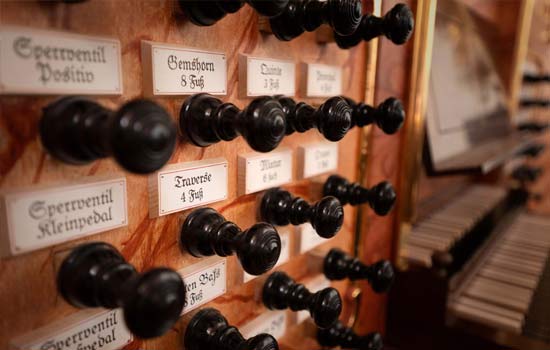

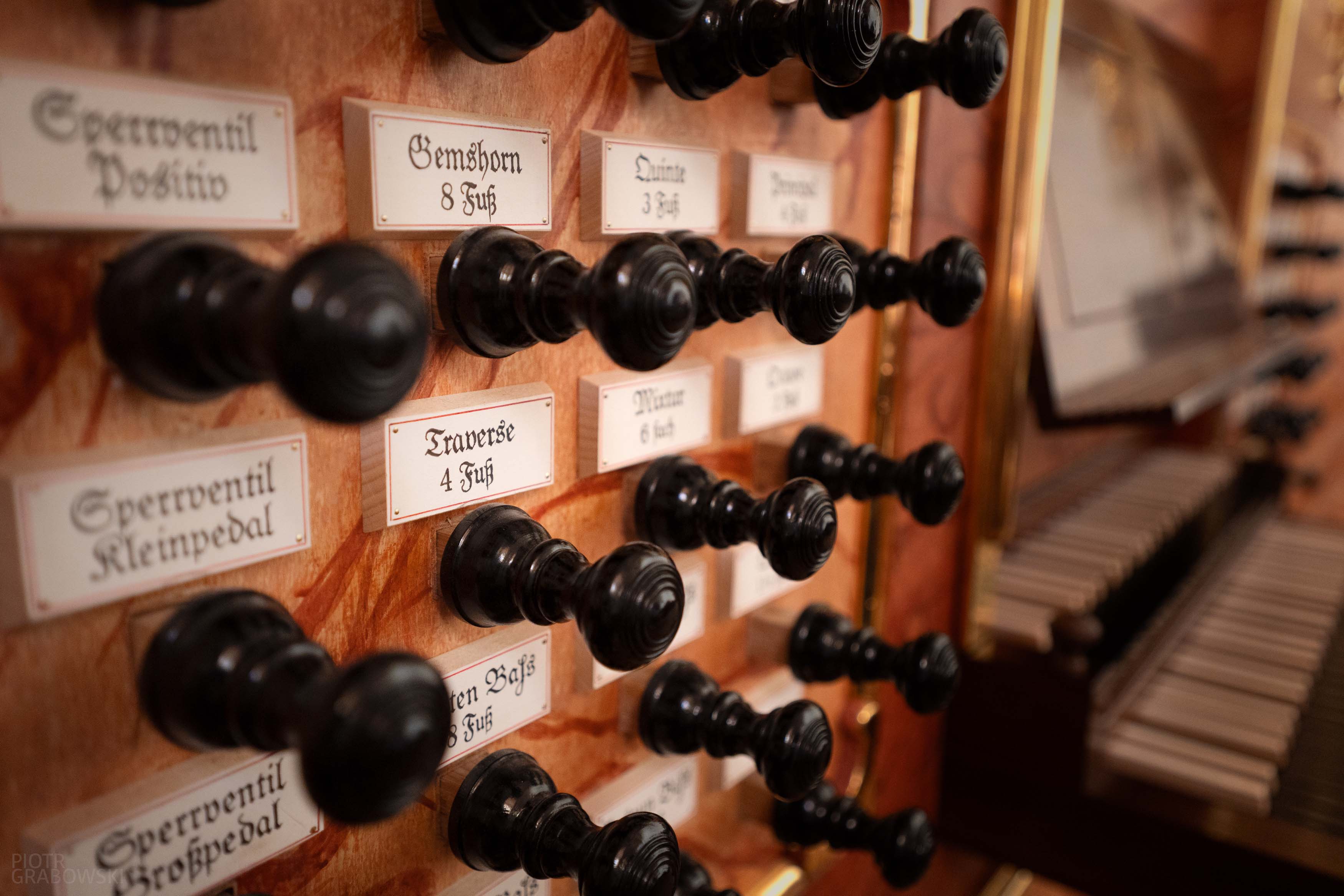

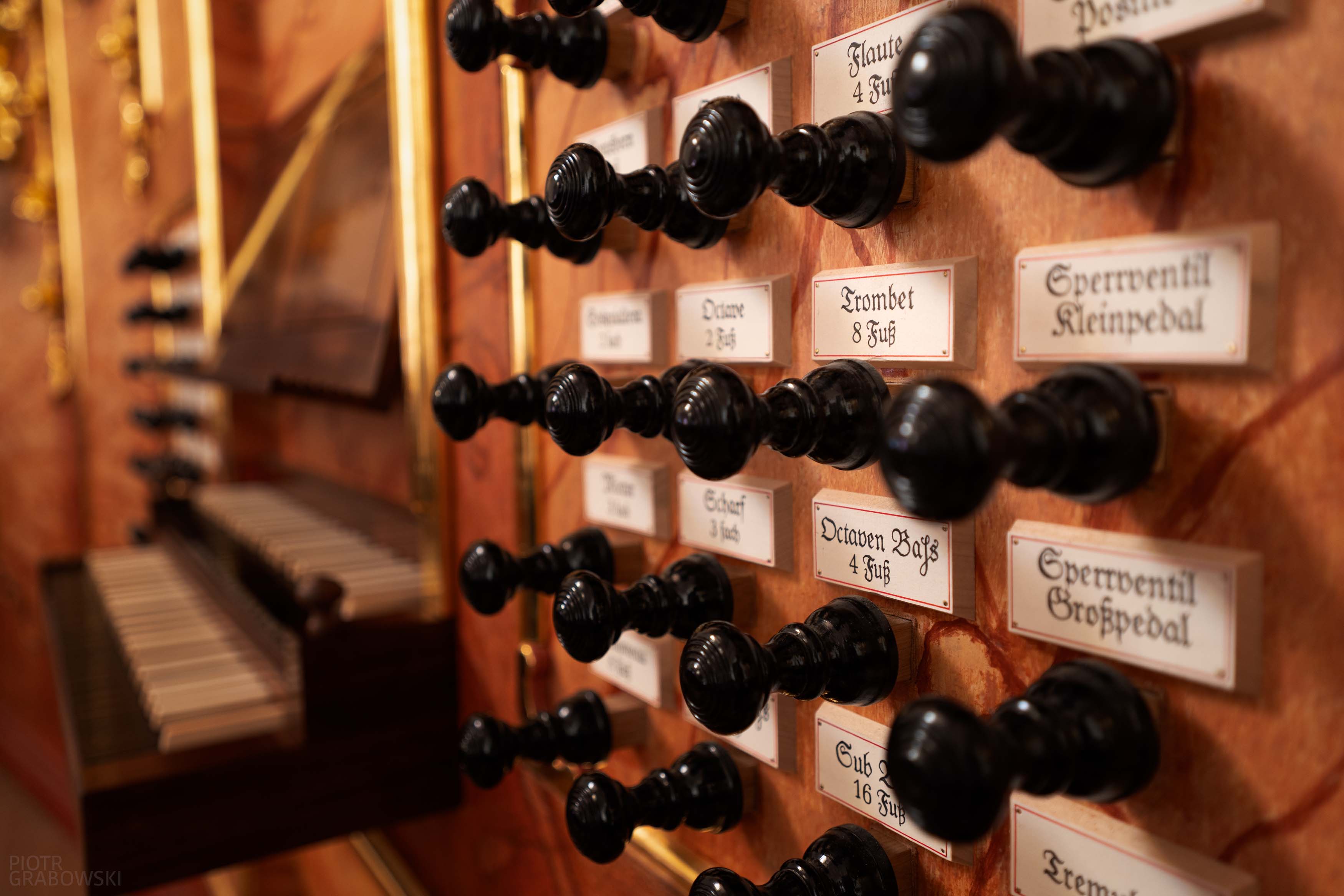

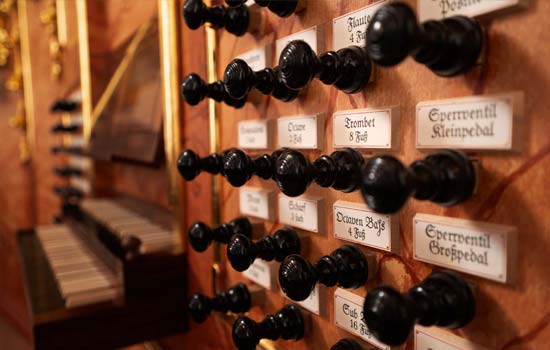

Sperrventil Hauptwerk, Positiv, Großpedal1, Kleinpedal2 allows to disable multiple stops from a given division
Calcantenglocke

Listening perspectives

Using this audio player you can listen to different audio channels the sample set is made of.
Use the sliders corresponding for each audio group to modify its volume.

Close
35%
Solo
Front
100%
Solo
Rear
60%
Solo

0:00

Technical details

General
Sample rate 48 kHz
Bit resolution 24 bit
Channel count 6 (3 × Stereo)
Tremulant model sampled chromatically
Compatible software Hauptwerk v. 4.2 or higher
Memory requirements
24 bit, 6 channels 24 GB
24 bit, 6 channels without sampled tremulant 19 GB
16 bit, 6 channels 13 GB
16 bit, 6 channels without sampled tremulant 11 GB
24 bit, 2 channels 8.9 GB
24 bit, 2 channels without sampled tremulant 7.3 GB
16 bit, 2 channels 5.2 GB
16 bit, 2 channels without sampled tremulant 4.3 GB
Please note, that these values mean how much of free RAM you need to run the sample set. Usually you should add to them around 3-6 GB to see how much total RAM you should have installed on your computer. The values were given for Loseless compression setting turned on. Please note that this doesn't refer to free disk space.
For multichannel sample sets, the requirements for not all channels loaded are only approximated. Closer audio groups (close, front) have slightly lower requirements than further ones (middle, rear), so it depends which audio groups you will choose to load.

Video: How to load only selected audio groups

Order

Choose which version you want to order. If you want to try the demo first, use the Add to cart button close to Demo version label and proceed to the checkout to get the download link. The only limitation of demo versions is the number of available stops. Click Show demo version button under the stoplist to see the available stops.

Full version

249 €
Demo version

Free

Please note that these prices don't include taxes. The correct VAT rate for your order is calculated inside the cart after you provide the information about your country.
If you want to order multiple licenses, after adding to cart you can change quantities in the Cart page.

Updates

No updates have been released so far.
